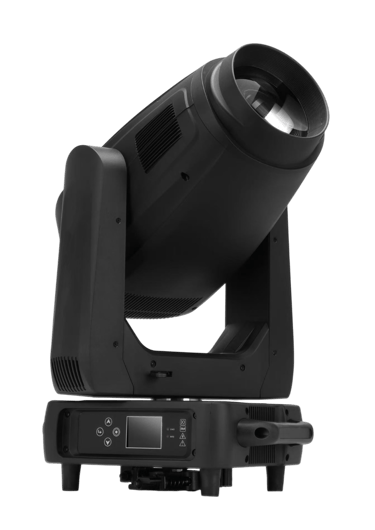

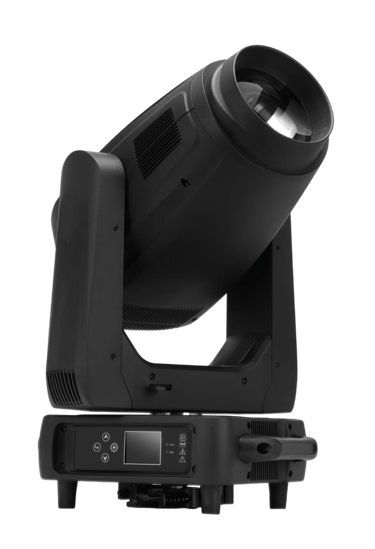

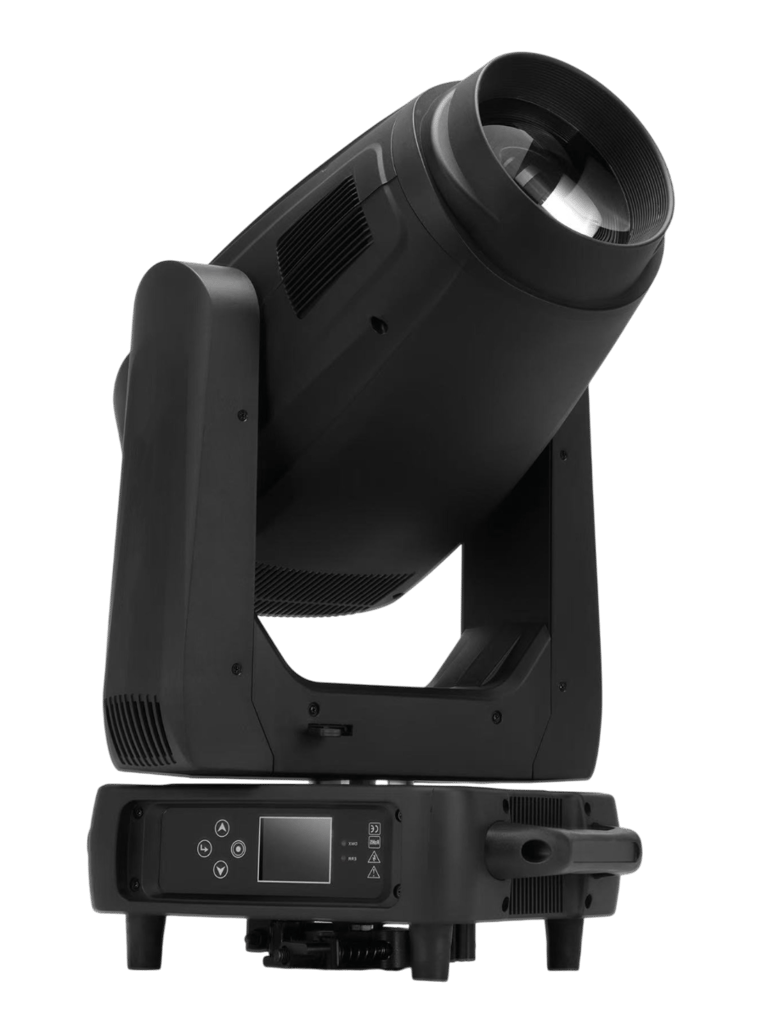

EGLE 700 F

TECHNICAL PARAMETERS

Power supply AC100~240V, 50/60Hz Power consumption: 950W

Light source

High power 700W white LED engine/Flicker-Free Source Rated life: 20,000 hrs Color temperature: 6300K Standard mode Ra:≥70,Optional High CRI mode: Ra≥90 Lens: 138mm diameter 111000Lux @5m

OPTIC

Focus:Motorized focusing, ultra-smooth focus adjustment Iris: Motorized, linear Strobe: 25Hz with random pulse strobe Dimming:0~100% linear dimming

Frost: 0~100% linear frost Zoom angle: 4 degree to 50 degree linear zoom

Effect SECTION

CMY color mixing system

Independent CTO filter from 2500k to 6500k linear adjust

Color wheel: 6 fixed colors + white, half-color with rainbow effect

Rotating gobo wheel:7 replaceable rotating glass gobos + white with gobo shaking (Diameter 14MM, External diameter 22.9MM, Thickness 1.1MM)

Fixed gobo wheel: 8 replaceable fixed glass gobos + white with gobo shaking

(Diameter 14MM, External diameter 17.9MM, Thickness 1.1MM) Prism wheel: Rotating 4-faced prism Animation wheel with water, wave and flame effects, rotatable and replaceable

FRAMING SYSTEM

Framing shutters: 4x framing shutters, each individually controllable Each shutter blade can block out light completely Framing module can be rotated at 90° Movement is fast, smooth and precise, with adjustable speed 6%-100% iris system

CONTROL AND PROGRAMMING

Pan/Tilt: 540/270°16bit solution Control mode: DMX512/RDM/Auto run/Artnet(Optional) DMX channels: 38CH/41CH Ture1 Powercon in+out/3pin+5Pin DMX in+out 2.8 Inch touch screen LCD display, with display flip

BODY

IP20 Dust-proof and oil-proof design with Folding clamp Fixture Size: 400*285*693mm Net weight: 28kgs Carton Size: 795*365*505mm Gross weight: 32kgs 2in1 fly case optional
