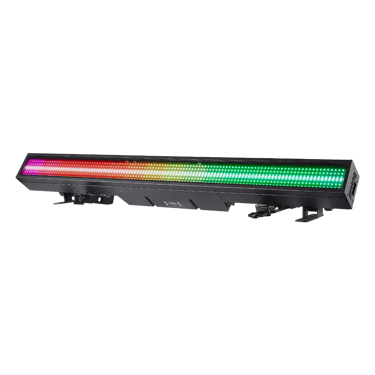

SUPERNOVA EV

Electric equipment specification

10.1 Electrical paramters

SOURCE:RGB 672 LED-5050,W 112LED-3535

Max POWER:700W

VOLTAGE:AC100-240V 50/60HZ

Color temperature：8000K(W)

10.2 Weight and dimensions

Dimensions：1000X160X188mm

NET WEIGHT:10Kg

10.3 Channel Characteristics

1.Channel:9/10CH(Mode1),13/14CH(Mode2),31/32CH(M

ode3),39/40CH(Mode4),33/34CH(Mode5).

3.Shutter: electronic shutter, random strobe.

4.LED individual control, preseting automatical

temperature control system.

10.4 Menu Function

1.OLED display.

2.Display the time using of lighting feature and lamp

as well as the times of turning on for lamp.

3.After the DMX signal is disconnected, the display

will be bright and dark.
