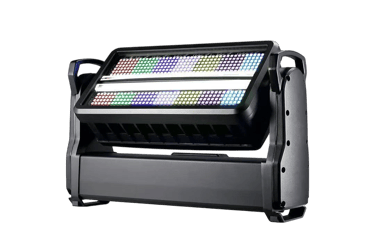

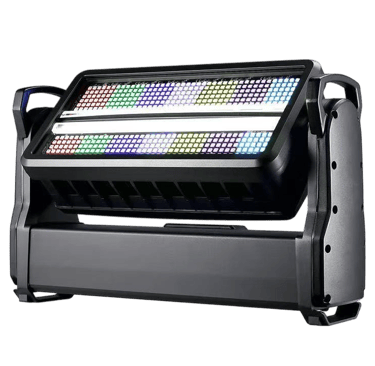

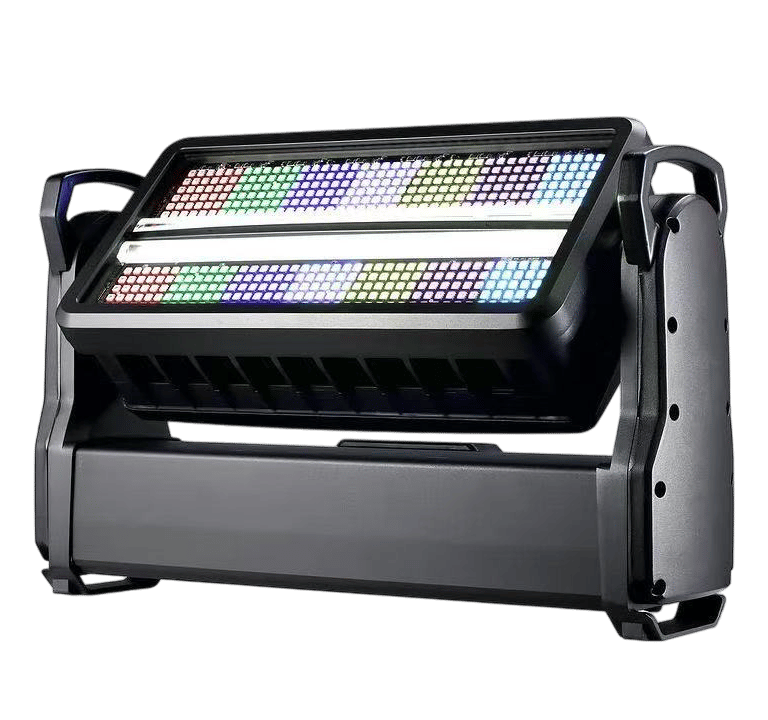

TORNADO

Specification

Strobe Panel LEDs LED Type: 5050 0.5W RGB 3in1 LEDs LED Count: 504 LED Colors: RGB LED Segments: 14 (2 x 7) Strobe Tube LEDs LED Type: 3535 5W 6500K LED LED Count: 392 LED Colors: Cool-White LED Segments:28(2x14)

Movement Resolution: 8-16 Bit Position Feedback: yes Tilt (Degrees): 185° Control Control Modes:7 Display: Illuminated graphic LCD Protocol: USITT DMX-512, RDM RDM: Bidirectional communication Wireless DMX: 2.4 GHz W-DMX™ (optional)

Cooling: Temperature controlled, overheating protection

Effects Dimmer: 0-100% electronic Shutter: electronic, max. 20 Hz Internal Effects: LED Macro Effects Connectors Signal connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out Power Input: Seetronic powerCON TRUE1 In/Out

Operating Condtions Mains voltage: 100-240V AC / 50-60Hz

Power: 1200W Maximum ambient temperature: -30°C / 86°F , 50°C / 122°F Operating Position: any Mounting Options Standing: Rubber feet Hanging: Omega-Bracket Safety wire attachment: foldout eyelets Shipping Single fixture: cardboard (inner and outer cartons) Tourpack: 4-way Flight Case Housing Colors

Standard colors: black Dimensions & Weight Length: 502 mm / 119.8 in Width: 137 mm / 5.4 in Height (head horizontal): 326 mm / 12.8 in Weight N.W: 11.2 kg G.W: 13.5 kg
