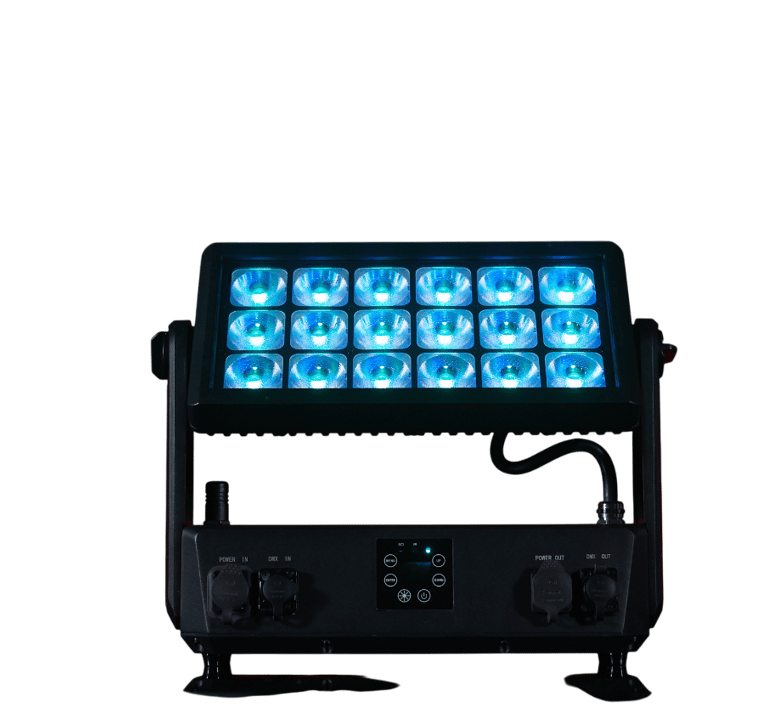

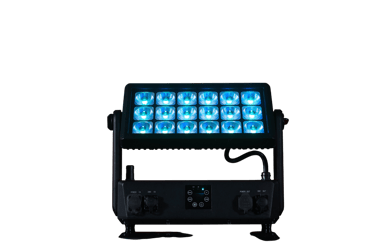

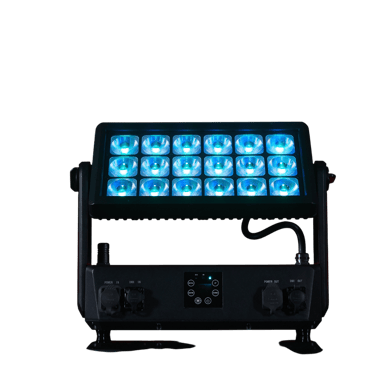

TORNADO BAT

TECHNICAL PARAMETERS BOBDY Die cast aluminum Waterproof grade:

IP65 Tilt manually adjustable angle LIGHT SOURCE Light source: 18X20W

RGBWA UV LED LED lifespan: 50000 hours OPTIC Beam angle: 20 ° (optional

lens angle of 10 °/40 °) Spot angle: 32 ° Dimming: No jitter CCT shortcut key

(color temperature 2700K-10000K adjustable) CONTROL AND PROGRAM 6

touch buttons Control panel: OLED display screen Control protocol: Wired

DMX512, IR remote control, APP (WIFI) (supports Apple and Android), 2.4G

wireless DMX512 (compatible with Sweden),RDM DMX channel mode: 4

modes DMX channels: 2/6/8/11 channels Software upgrade: Upgrade

software through DMX connection ELECTRICAL Input power range: AC110V-

240V,50/60Hz Power: 100W Power socket: Waterproof powercon true1

in&out (Seetronic brand) Signal: 3-Pin waterproof XLR socket in&out

BATTERY Battery capacity: 24000mAh Charging and discharging times: 500

times Charging time: 7.5H Full power on: 3.2H Auto: Self run 7.5H R:18H

G:13H B:15H W:14.5H A:15.5H UV:18H WORK ENVIRONMENT Maximum

ambient temperature: 45 ° C Minimum operating temperature: 0 ° C

Maximum surface temperature: 65 ° C Protection level: IP65 INSTALL Can be

installed horizontally/vertically/upside down Quick lock hole at the bottom

Safety rope hole FACTORY CONFIGURATION Instruction manual Power

line/DMX signal line Quick lock component OPTIONAL PARTS Flightcase

Clamps Magnetic diffusion filter Barn door CARTON SIZE 1PCS Length: 43CM

Width: 43CM Height: 26.5CM Net weight: 10.1KG FLIGHT CASE: 4in1 Length:

72.5CM Width: 47.5CM Height: 63.5CM Net weight: 57.5KG FLIGHT CASE:

6in1 Length: 120cm Width: 46.5CM Height: 65.5CM Net weight: 88.5KG SIZE

& WEIGHT Net weight: 8.5KG Length: 41CM Width: 18CM Height: 32CM
